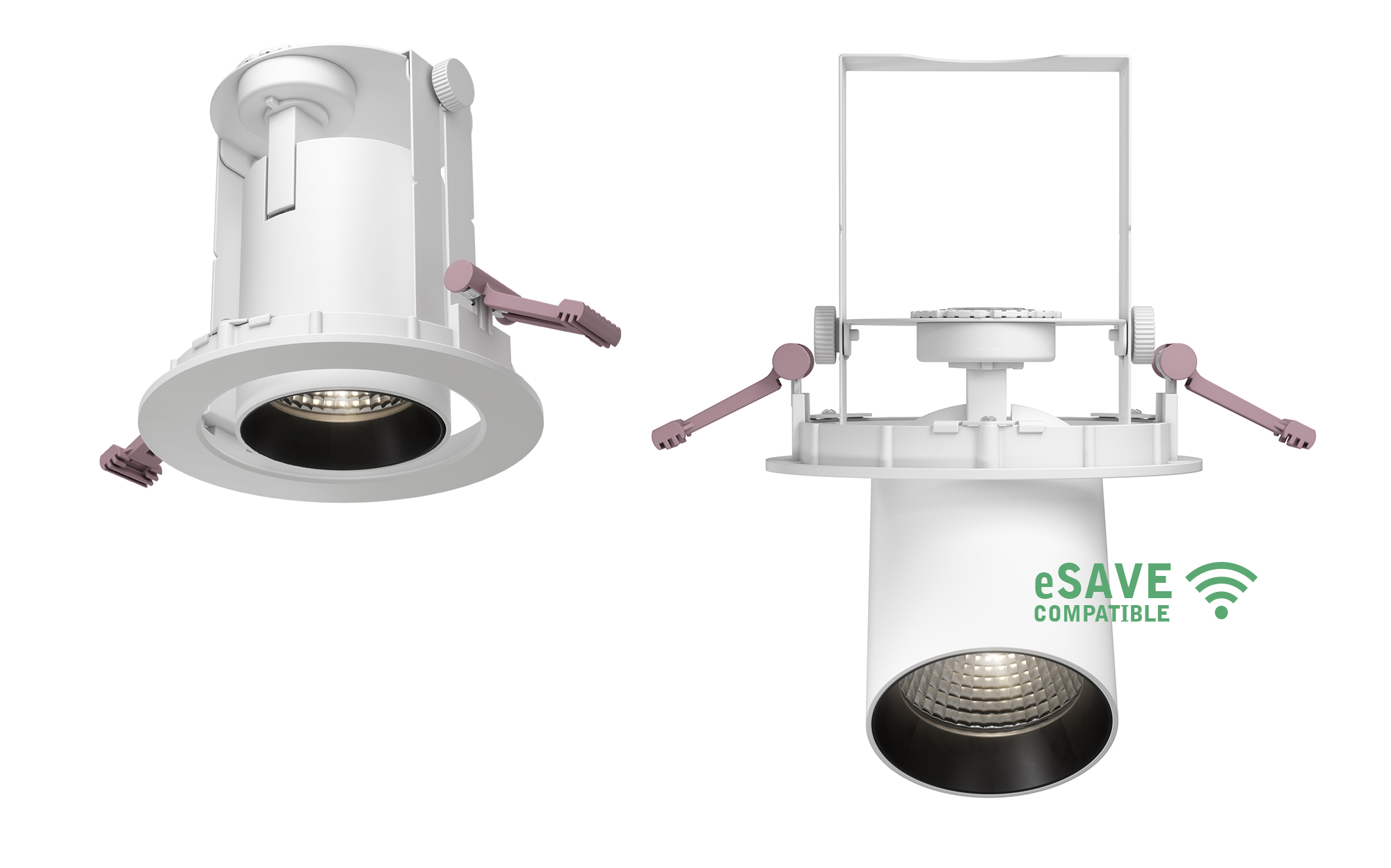

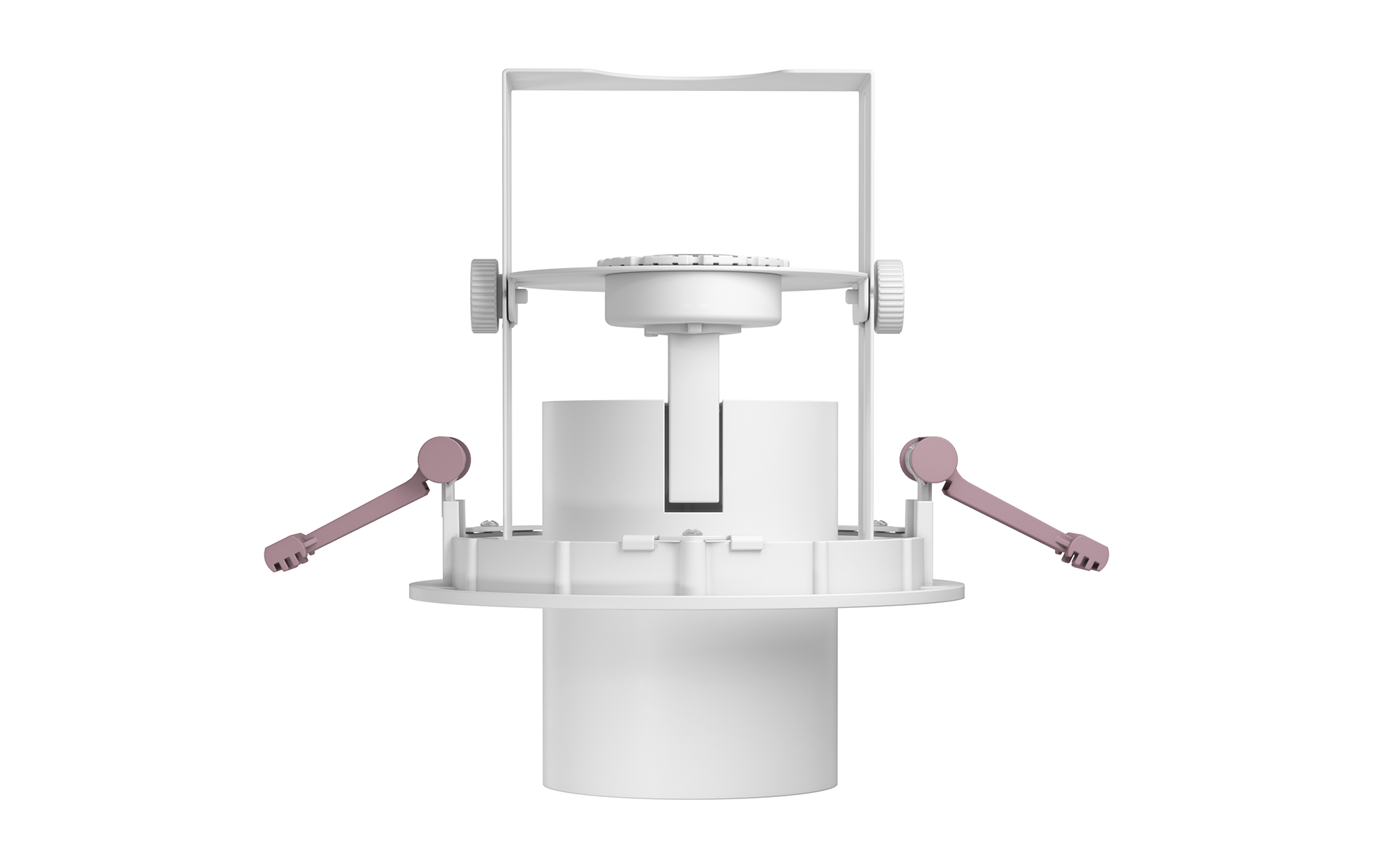

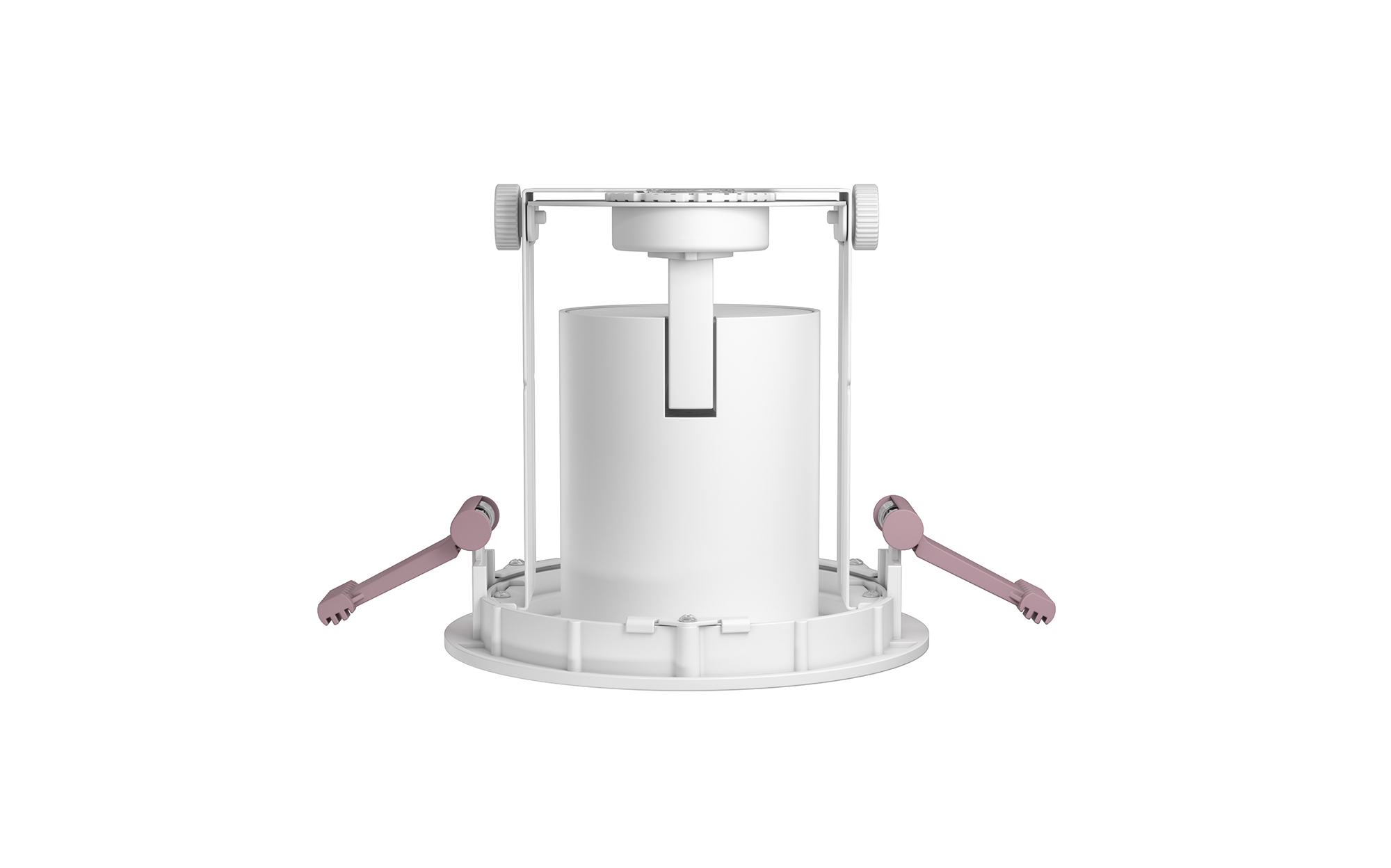

smartLED™ DBR
Retractable and rotatable pop-down LED downlight.
Light fixture body made of aluminium. Passive cooling of the LED chip for optimum service life and reliability. 7-years warranty.
MIRO Silver reflector that creates a well-balanced light pattern with very high efficiency.

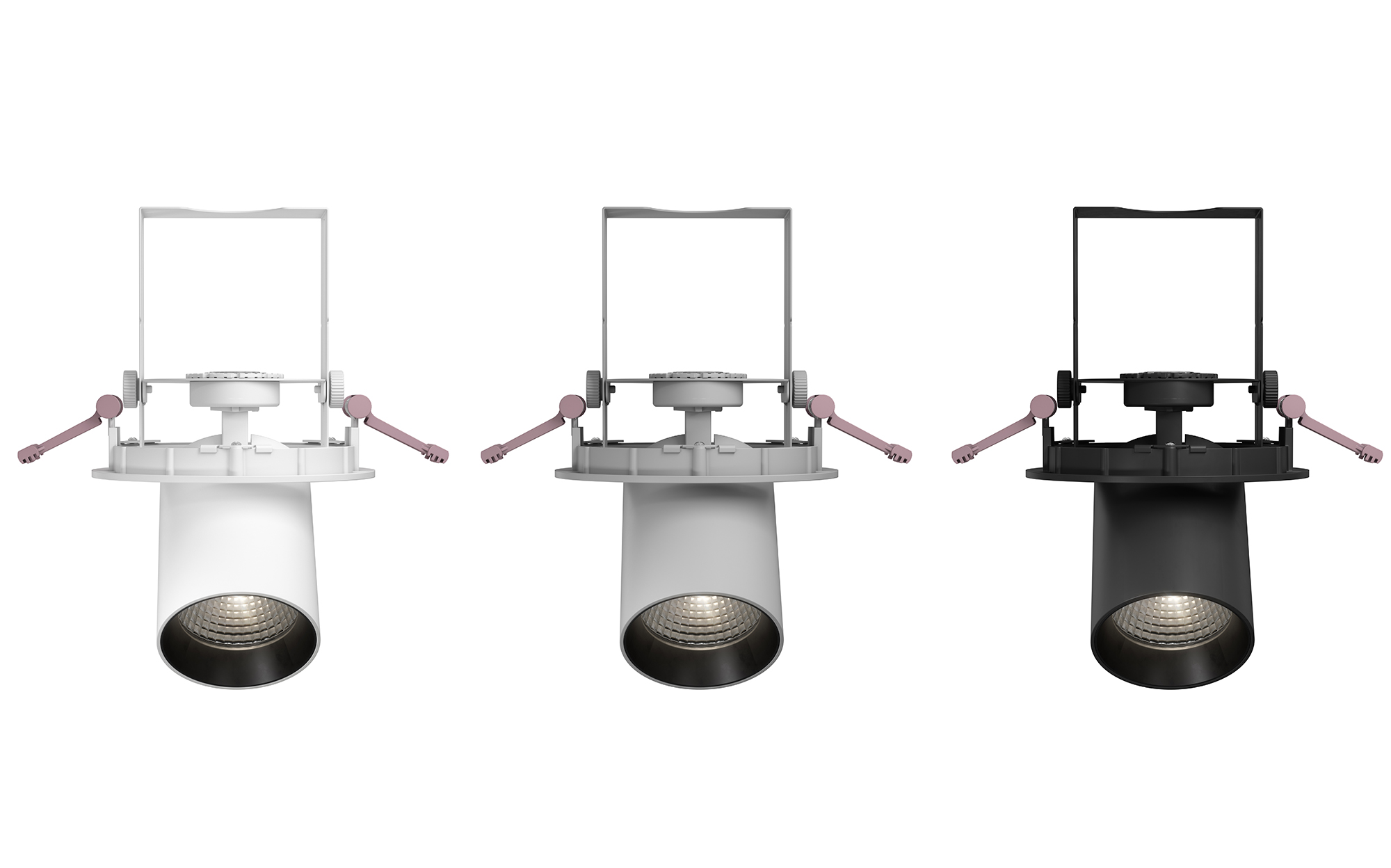

Available in a variation of LED spectrum colours upon request.
3,0 meter low voltage cable from downlight to driver included. Extension cables.
Available as option with eSAVE.
Tecnical data
Material: Plastic och aluminum
Color temp [K]: 930 B BBL, 935 B BBL, 940
Power consumption [W]: 23 W
Lumen: 2950 lm (3000 K)
Connection cable: 3,0 meter cable with quick connection to drive unit
Nominal voltage: 230/240 V, 50/60 Hz
Protection class: IP 20. CE Approved. Class III.
