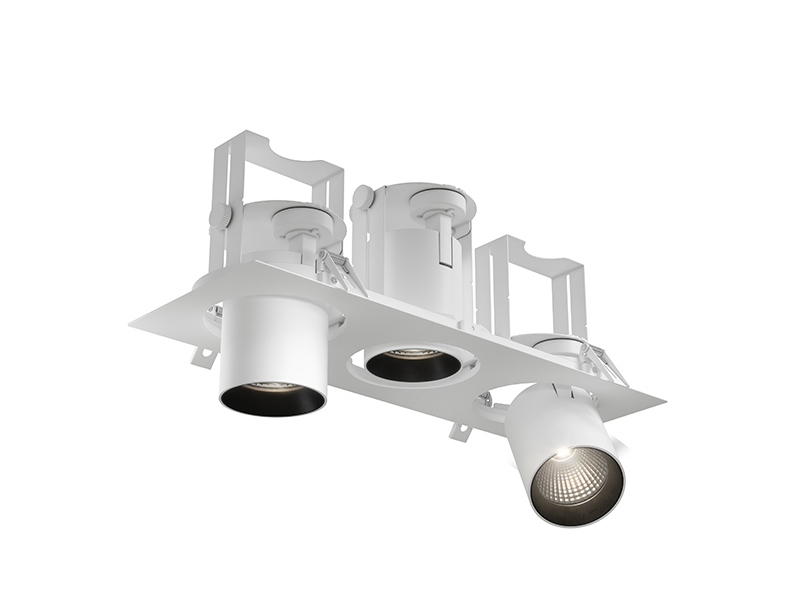

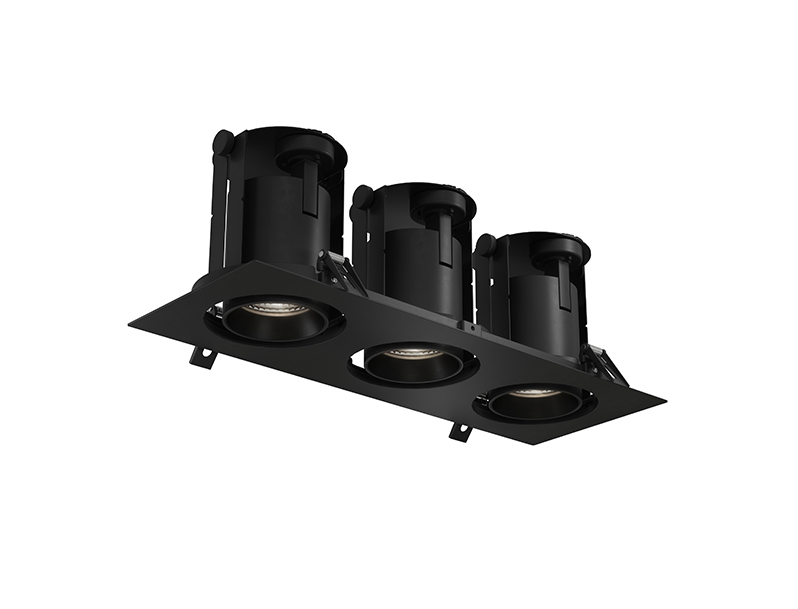

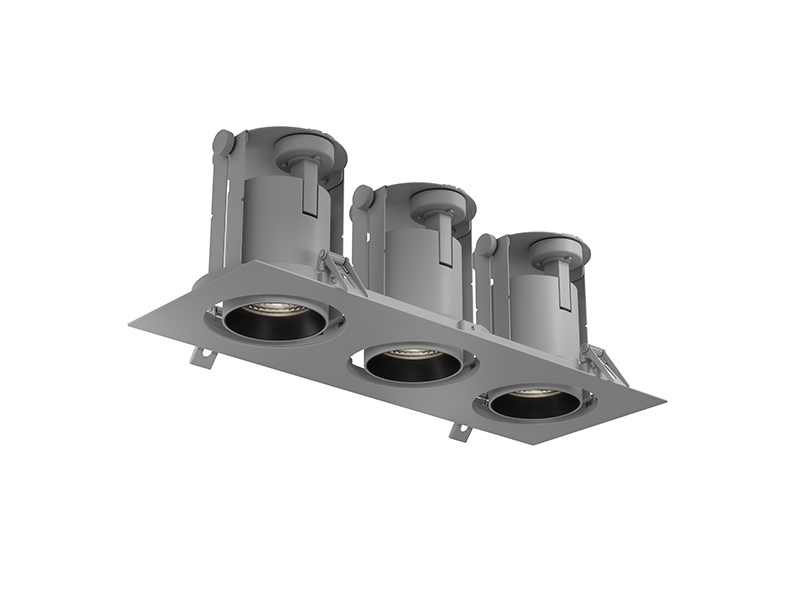

smartLED™ DBS 3

3x Retractable and rotatable pop-down LED downlight.

Light fixture body made of aluminium. Passive cooling of the LED chip for optimum service life and reliability. 7-years warranty.

MIRO Silver reflector that creates a well-balanced light pattern with very high efficiency.

Available in a variation of LED spectrum colours upon request.

3,0 meter low voltage cable from downlight to driver included. Extension cables.

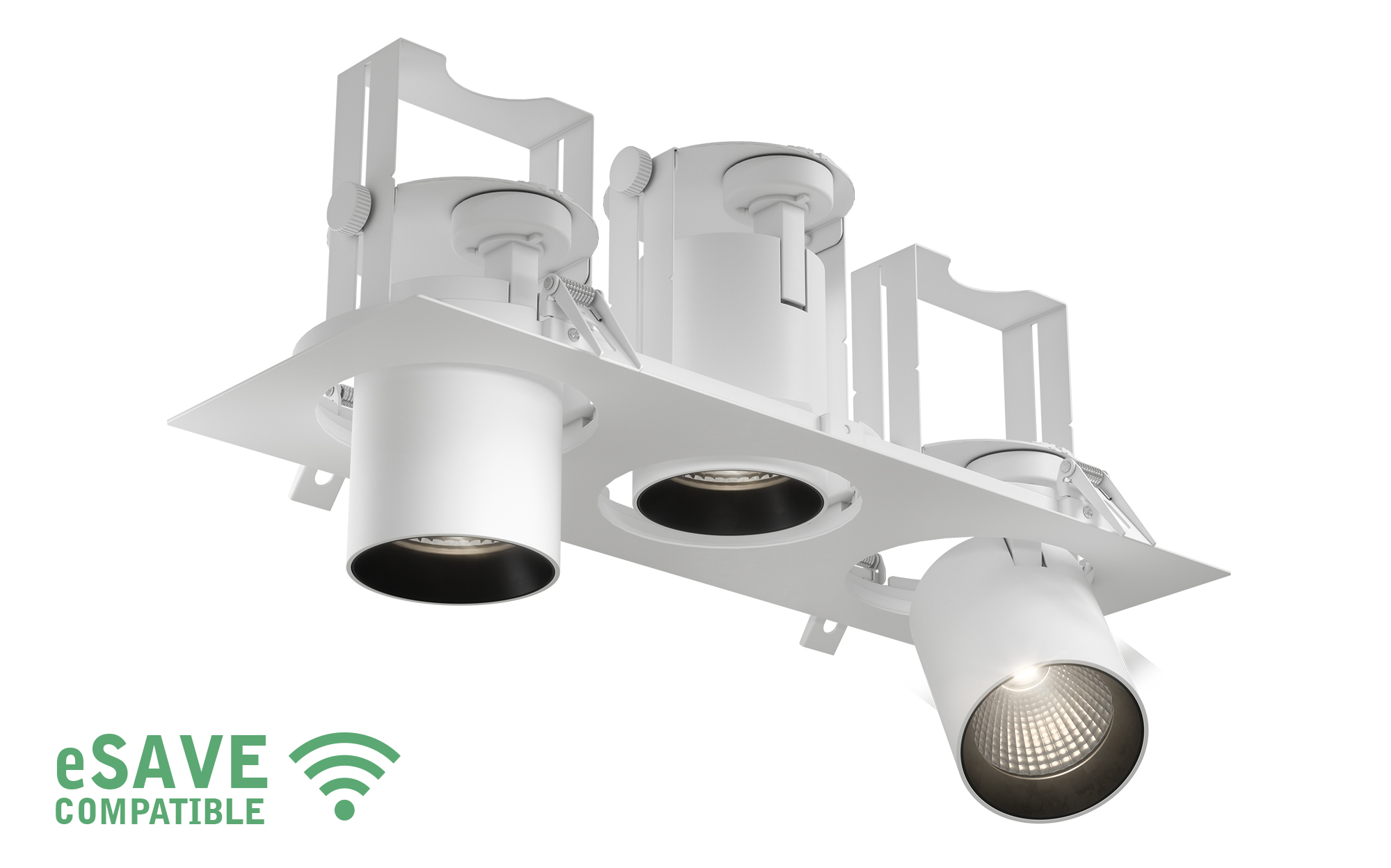

Available as option with eSAVE.

Tecnical data

Color temp [K]: 930 B BBL, 935 B BBL, 940

Material: Plastic och aluminum

Power consumption [W]: 3 x 23 W

Lumen: 3 x 2950 lm (3000 K)

Connection cable: 3,0 meter cable with quick connection to drive unit

Nominal voltage: 230/240 V, 50/60 Hz

Protection class: IP 20. CE Approved. Class III.

Technical data pdf
Installationsmanual pdf
Cables & accessories pdf
